The DualClean Softwall Strip Cleaner is ideal for cleaning strip curtains and barriers in clean workspace enclosures and ISO Class 5 isolated cleanroom work cells.
The DualClean Softwall Strip Cleaner is a unique system that enables one operator to easily and quickly clean both sides of 4” - 12” plastic strip curtains in a single pass. The system consists of a fabric cover that is snugly installed over a stainless steel frame with two curved-surface arms. Each curtain strip to be cleaned is positioned between the two arms of the frame, with the arms contacting both sides of the curtain at once. With slight tension maintained on the curtain strip, the cleaner is moved down the length of the strip, easily and uniformly cleaning both sides of the entire length of the strip.
The DualClean system can be used with two different fabric covers to provide the best cleaning performance for a variety of curtain types and environments. The microfiber cover removes and traps dust and other visible contaminants. The Quiltec® knit polyester cover is ideally suited to more critical environments. For highly critical environments like ISO Class 5 cleanrooms, the Quiltec cover is available sterile and triple bagged.
Using Contec’s QuickConnect™ system, the DualClean frame may be attached to a wide variety of handles. The short telescoping fiberglass handle is recommended. The electropolished, stainless steel frame is resistant to most chemicals and disinfectants and may be sterilized by common methods including gamma irradiation, ethylene oxide, or autoclave.
Read More
The DualClean Softwall Strip Cleaner is a unique system that enables one operator to easily and quickly clean both sides of 4” - 12” plastic strip curtains in a single pass. The system consists of a fabric cover that is snugly installed over a stainless steel frame with two curved-surface arms. Each curtain strip to be cleaned is positioned between the two arms of the frame, with the arms contacting both sides of the curtain at once. With slight tension maintained on the curtain strip, the cleaner is moved down the length of the strip, easily and uniformly cleaning both sides of the entire length of the strip.
The DualClean system can be used with two different fabric covers to provide the best cleaning performance for a variety of curtain types and environments. The microfiber cover removes and traps dust and other visible contaminants. The Quiltec® knit polyester cover is ideally suited to more critical environments. For highly critical environments like ISO Class 5 cleanrooms, the Quiltec cover is available sterile and triple bagged.
Using Contec’s QuickConnect™ system, the DualClean frame may be attached to a wide variety of handles. The short telescoping fiberglass handle is recommended. The electropolished, stainless steel frame is resistant to most chemicals and disinfectants and may be sterilized by common methods including gamma irradiation, ethylene oxide, or autoclave.
Features & Benefits
- Stainless steel frame securely holds wiping covers for uniform strip contact
- Cleans both sides of strip curtain, up to 12” wide in one pass
- Tension on strip is easily controlled
- Prevents cleaning covers from twisting and binding
- Can be sterilized by most common methods making it ideal for critical environments
- Traps and removes contaminants
- Extremely clean and durable
- Compatible with most common solvents and disinfectants
Product Information
Denotes Sterile Product
Product Information
Denotes Sterile Product
Part No.
Description
Size
Packaging
Sample
Part
Description

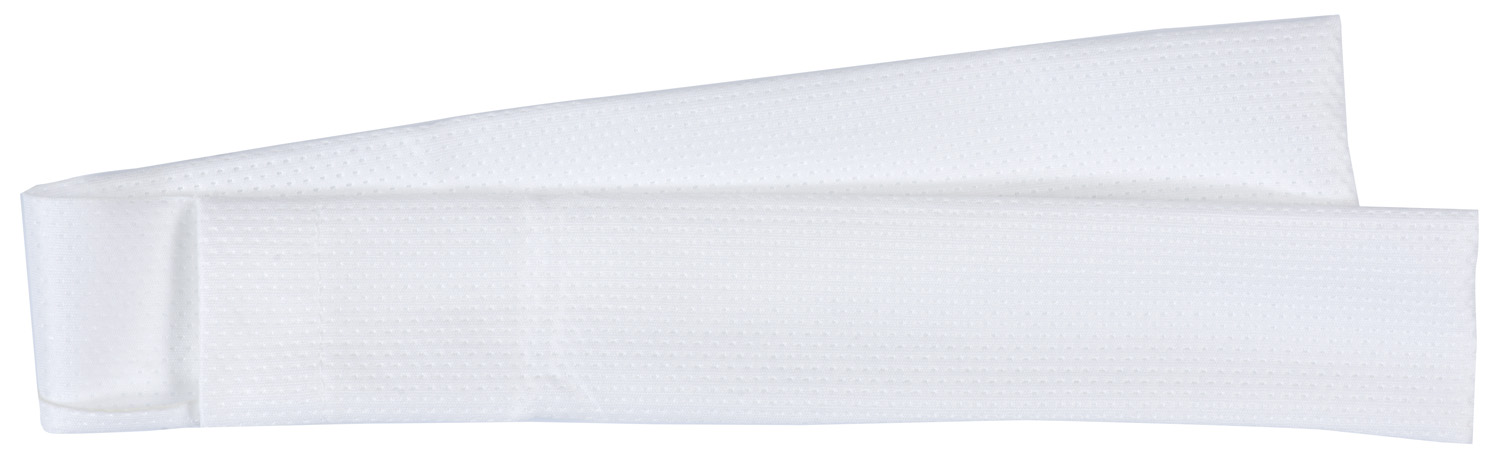

Contec DualClean™ Quiltec CoverPart No.
DCQT0001Contec DualClean™ Quiltec Cover
Size
26'' x 2.5'' (66x6cm)Packaging
8/bag; 10 bags/caseDescription

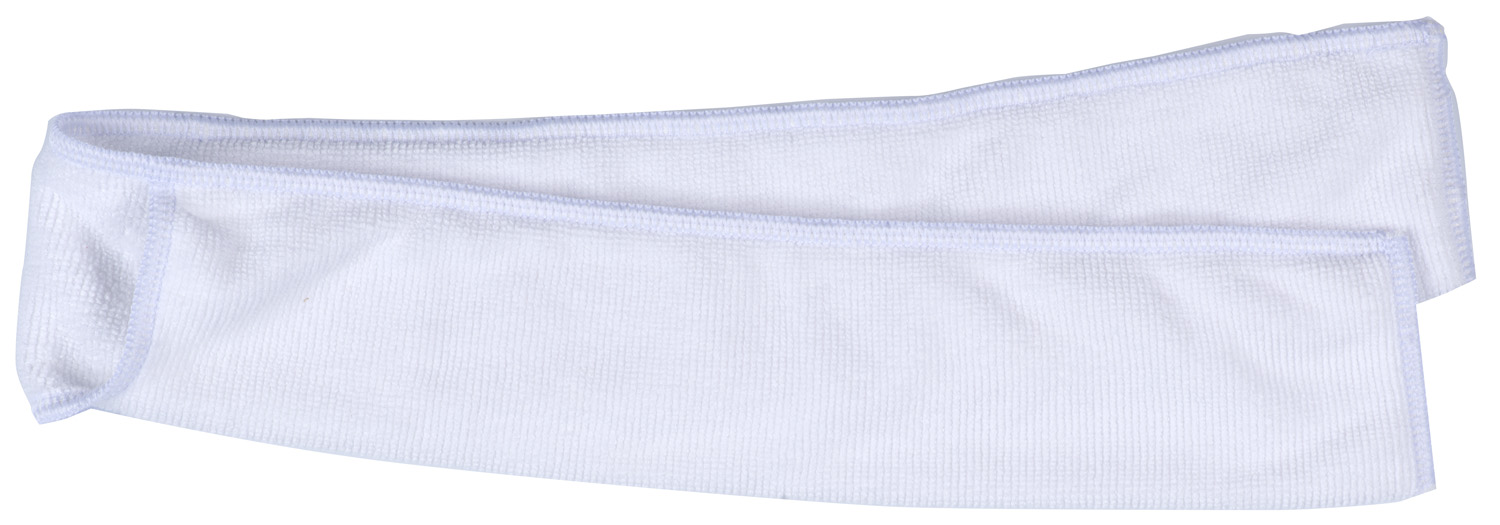

Contec DualClean™ Microfiber CoverPart No.
DCMD0001Contec DualClean™ Microfiber Cover
Size
26.3'' x 2.77'' (67x7cm)Packaging
8/bag; 10 bags/caseDescription
Contec DualClean™ Sterile Quiltec CoverPart No.
DCQT0002Contec DualClean™ Sterile Quiltec Cover
Size
26'' x 2.5'' (66x6cm)Packaging
4/bag; 20 bags/caseDescription

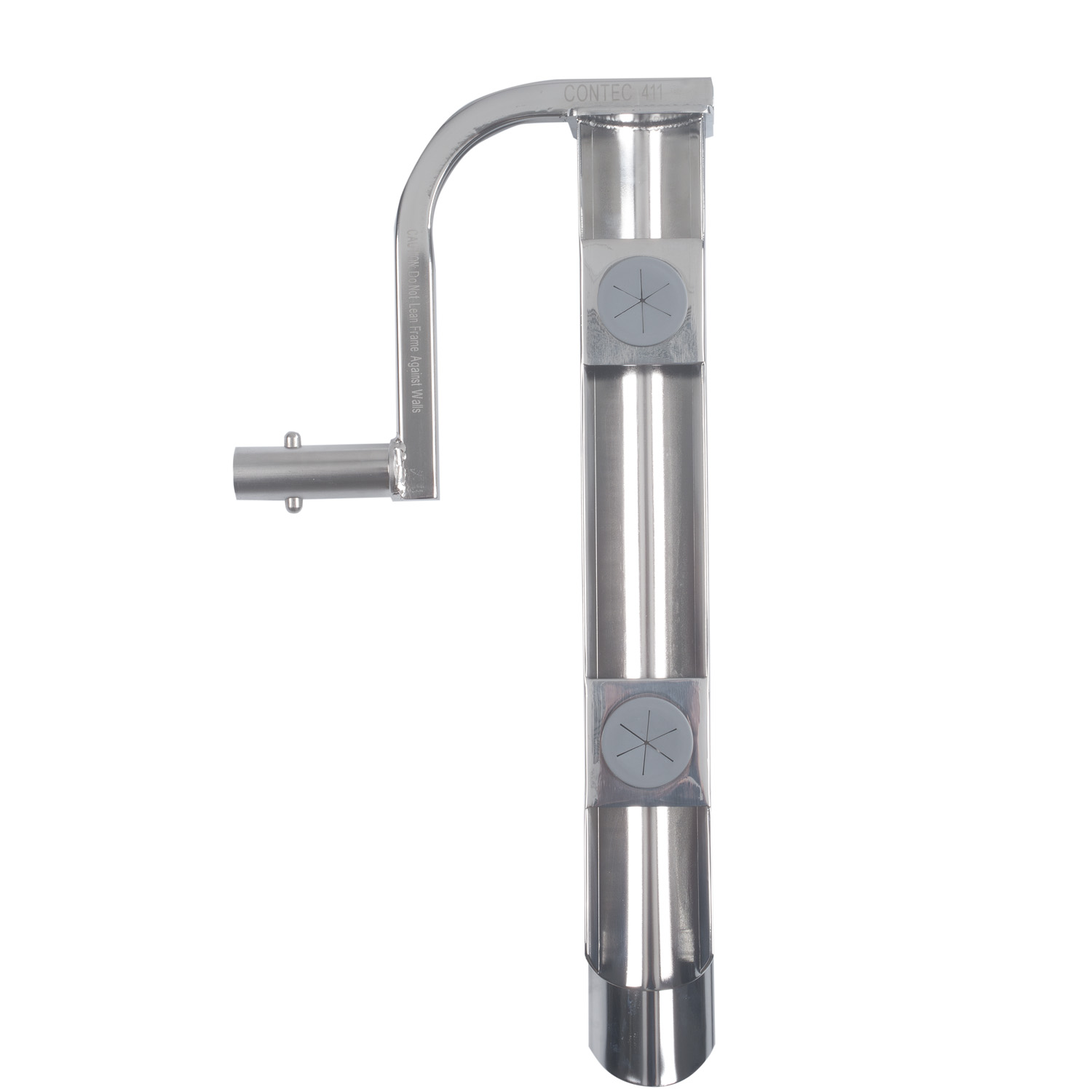

Contec DualClean™ Stainless Steel FramePart No.
2778Contec DualClean™ Stainless Steel Frame
Size
14.5'' x 2'' x 6.8'' (36.5x5x17cm)Packaging
1/caseDescription

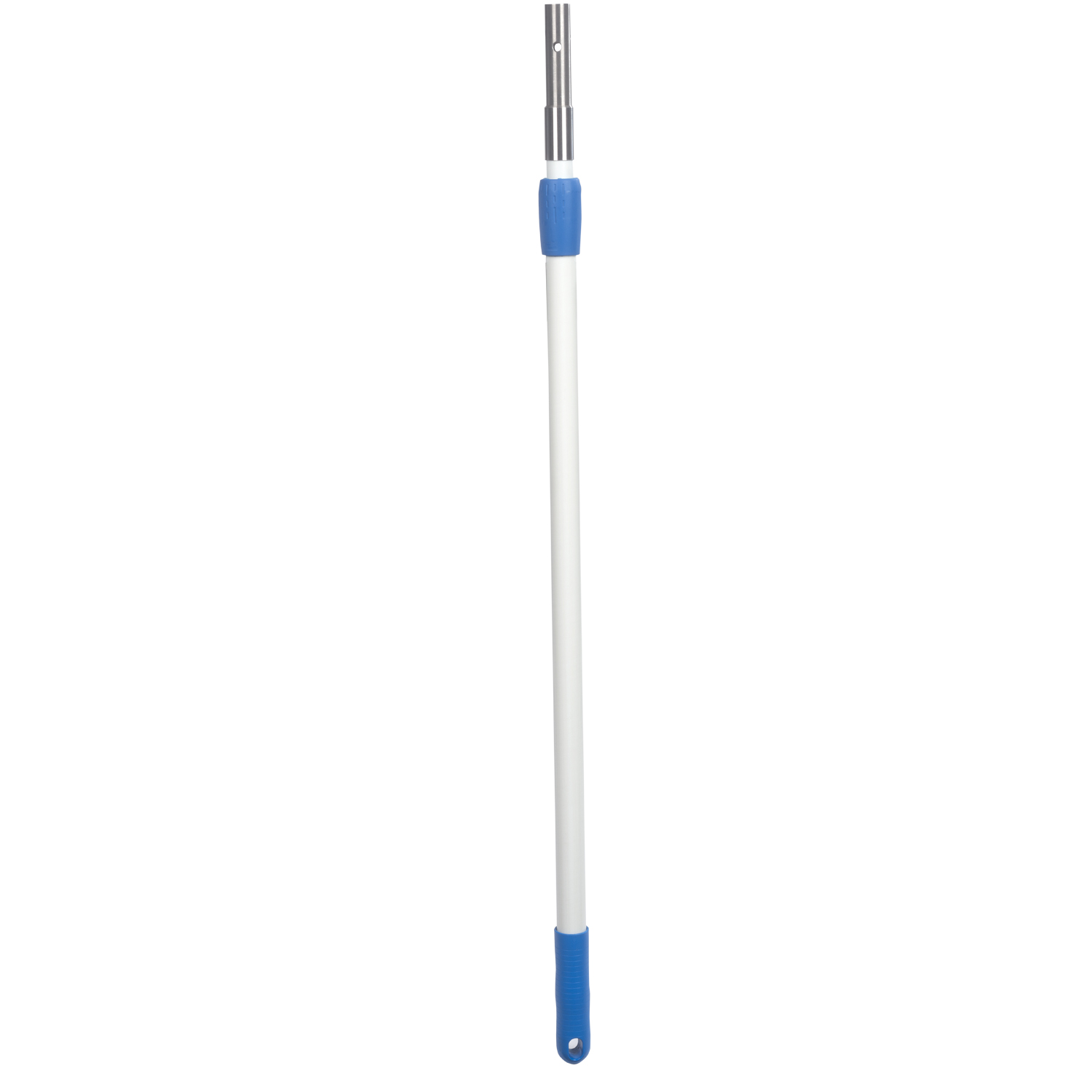

QuickConnect™ Fiberglass Telescopic HandlePart No.
2746SQuickConnect™ Fiberglass Telescopic Handle
Size
37.5'' - 65.5'' (95-166cm)Packaging
1/caseDescription
QuickConnect™ Carbon Fiber Telescopic HandlePart No.
CFH70QuickConnect™ Carbon Fiber Telescopic Handle
Size
40” - 70” (102-178cm)Packaging
1/caseDescription
QuickConnect™ Carbon Fiber Telescopic HandlePart No.
CFH114QuickConnect™ Carbon Fiber Telescopic Handle
Size
63” - 114” (160-290cm)Packaging
1/caseDescription
QuickConnect™ Carbon Fiber Telescopic HandlePart No.
CFH224 QuickConnect™ Carbon Fiber Telescopic Handle
Size
66” - 224” (168-568cm)Packaging
1/case
